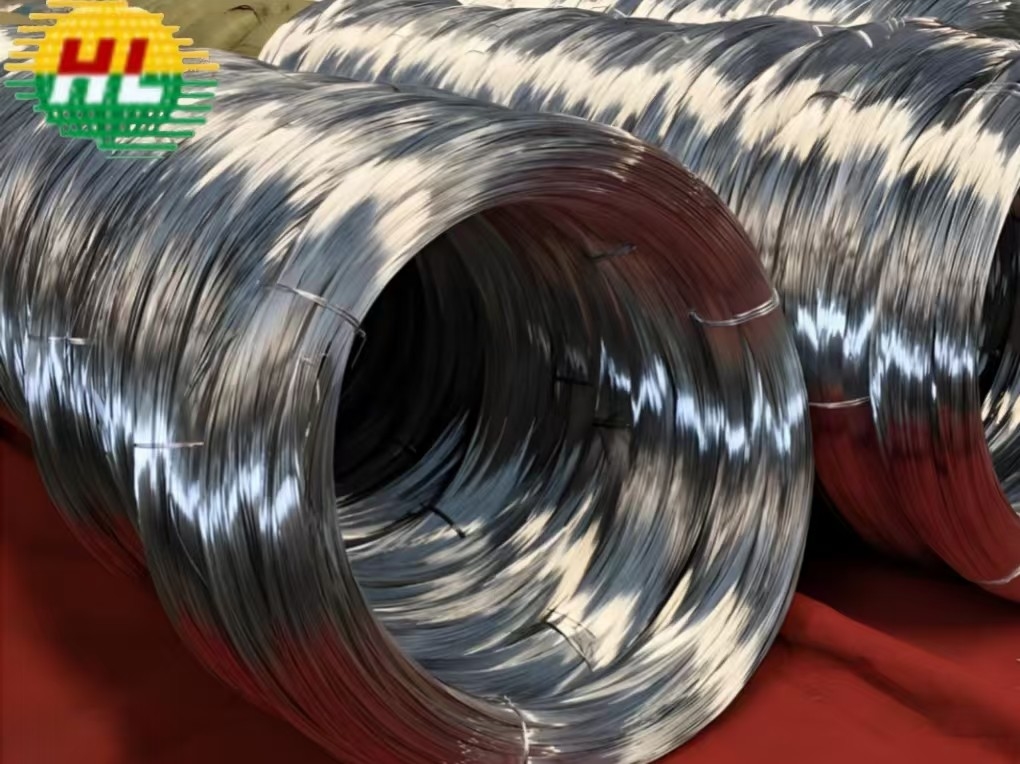

Low Carbon Hot Dip Galvanized Iron Binding Wire For Fence Making

High quality low carbon hot-dip galvanized wire

  It is processed by high quality low carbon steel coil, which is made of high quality low carbon steel, after drawing and forming, pickling and descaling, high temperature annealing, hot-dip galvanizing. It is processed by drawing and molding, pickling and descaling, high temperature annealing, hot galvanizing, cooling and other processes.

  Galvanized iron wire has good toughness and elasticity, the highest amount of zinc can reach 300g/sqm. It has the characteristics of thick galvanized layer and strong corrosion resistance.

  Hot-dip galvanizing is in the heating melting zinc liquid dip plating, production speed, thick but uneven coating, the market allows a minimum thickness of 45 microns, the highest up to 300 microns or more. The color is darker, consumes more zinc metal, forms an infiltration layer with the base metal, has good corrosion resistance, and hot-dip galvanizing in outdoor environments can be maintained for decades.

  Due to the thicker coating obtained, hot-dip galvanizing has better protective properties than electro-galvanizing, and is therefore an important protective coating for steel and iron parts used in harsh working environments. Hot-dip galvanized products are widely used in chemical equipment, petroleum processing, marine exploration, metal structures, power transmission, shipbuilding and other industries, and are used in large numbers in the agricultural field, such as pesticide sprinkler irrigation, greenhouses, and in the construction industry, such as water and gas transmission, wire casing, scaffolding, bridges, highway guardrails and other areas.

You can see from the following pictures that the wires are PVC coated in different colors. Green, Red, White and Black are popular colors most people like, and other colors in RAL systems are also available for you to choose.

BLACK IRON WIRE

Black iron wire is a common used wire in our life. Black iron wire is made of high quality iron or steel. So black iron wire with high strength can be used to hang some heavy things. And our products with high tensile and elongation strength are not easy to be broken when using it. Compared with galvanized wire, black iron wire has poor corrosion resistance. But it cost less. We have two kinds of black iron wires. One is hard drawn wire, another is soft annealed wire. We can control the hardness of black iron wire during the annealing process. You can choose suitable one depends on your own use.

● Hard drawn wire

● Material: Iron wire, steel wire.

● Wire diameter: 0.8–4 mm.

● Wire gauge: BWG 8# to 23#.

● Tensile strength: 500–980 N/mm2

● Soft annealed wire

● Material: Steel wire.

● Wire gauge: BWG 16#, 18#, 19#, 20#, 22# are the most popular sizes.

● Type: Black soft annealed wire, bright soft annealed wire.

STEEL WIRE

Steel Wire is a kind of multifunctional wire. It can be made of carbon steel, stainless steel, copper, aluminum and other materials. High strength materials make it can withstand heavy things as hanging wire without damaged. We also have different types of steel wire, such as, coil wire, U type wire and straight cut wire. You can choose suitable one depends on your use. If you buy it as binding wire, you can choose coil wire, straight cut wire or others. In addition, we also have different surface treatments. These make steel wire is not easy to be corroded although in the bad environments.

GALVANIZED WIRE

Galvanized Wire is made of mild steel wire or high carbon steel wire. It includes Hot dipped galvanized wire and electro galvanized wire. High strength materials make it can load heavy things without being damaged. And galvanizing can make it has good corrosion resistance. So it has a long service life although under the bad environment. In addition, steel wire also has good softness. It can be bent into various types to meet different needs. And our wire products meet the requirements of international standards. You can use it without any worries. We provide various types and sizes of Galvanized Wires for customers to choose.

● Material: Mild steel wire, high carbon steel wire.

● Surface treatment: Hot dipped galvanized, Electro galvanized.

● Wire diameter: 0.20–9 mm.

● Zinc coat: 10–25 g/m2

● Tensile strength: 40–85 kg/mm2

● Standard: A411-08, ASTM B498, ISO 7989-2

STAINLESS STEEL WIRE

Stainless Steel Wire is in various types and specifications that are made of stainless steel. Stainless steel material makes it not easy to be corroded by acid and alkali in the bad environment. And stainless steel wire with good temperature resistance can withstand the temperatures up to 1100 °C. Stainless steel wire has smaller diameter than PVC coated wire, but it still can withstand the great weight without broken. Stainless steel wire has bright and smooth surface. In addition, stainless steel wire with excellent softness can be made into binding wire, hanging wire, barbed wire, chain link fence, chicken wire , wire baskets, fan guards, window screen and so on.

Specifications

● Material: 304, 304L, 316, 316L stainless steel wire.

● Wire diameter: 0.020–0.9 mm.

● Standard: ASTM A555, ASTM A493-16, A581M.

PVC COATED WIRE

PVC Coated Wire is usually made of galvanized low carbon steel wire or ordinary low carbon steel wire. After spraying or dipping process, PVC powder is evenly wrapped on the steel wire.

Specification

● Material: Galvanized wire, black iron wire.

● Surface treatment: PVC coated.

● Wire diameter: 8Gauge -22Gauge

● Core diameter: 0.6–4.0 mm.

● Outside diameter: 0.9–5.0 mm.

● PVC coating density: Less than 1.5 g/cm3

● Tensile strength: 30–75 kg/mm2

● Color: Black, white, green, blue, yellow orange, red and so on.

● Type: Coil PVC coated wire, U type PVC coated wire, straight cut PVC coated wire.

● Standard: BS EN 10245-2.

PACKAGING DETAILS

1. Plastic bag.

2. Woven bag.

3. PVC coated wire coils in box.

4. Straight cut wires in box.

APPLICATIONS
