Product Details:
Payment & Shipping Terms:
|
Features: | Beautiful Appearance, High Tensile Strength, Add More Security, Etc. | Product Name: | Double Twisted Hot Dipped 1.5mm Galvanized Barbed Wire 200m Roll |
---|---|---|---|
Material: | Galvanized Iron Wire | Wire Diameter: | 12, 14, 16 Gauge |
Barb Length: | 1.5-3cm | Barb Spacing: | 7.5-15cm |
Zinc Coating: | 30-200g/sqm | Waeving Type: | Normal Twist, Reverse Twist |
Coil Length: | 200m | Coil Weight: | 8kg, 10kg, 15kg, 20kg, 25kg/coil |
Color: | Silver/Galvanized, Dark Green, Gray, Or As Per Your Request | Packaging: | In Bulk; On Wooden Pallet |
Highlight: | double twisted hdg galvanized barbed wire,1.5mm galvanized barbed wire,galvanized razor wire multiple |

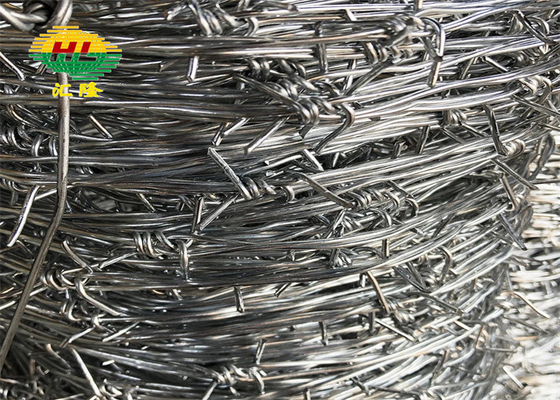

Introducing our Double Twisted Hot Dipped 1.5mm Galvanized Barbed Wire in a convenient 200m roll. This high-quality barbed wire is designed for robust security applications. The double-twisted construction enhances its strength and durability, making it an ideal choice for fencing projects that require reliable protection.
Specification
GALVANIZED BARBED WIRE | ||||
Line Wire and Barb Wire Diameter (BWG) |
Approximate Length per Kilogram in meter | |||
Barbs Spacing 3'' | Barbs Spacing 4'' | Barbs Spacing 5'' | Barbs Spacing 6'' | |
12 x 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
12 x 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12.5 x 12.5 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12.5 x 14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 |
13 x 13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 |
13 x 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13.5 x 14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14 x 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14.5 x 14.5 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15 x 15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15.5 x 15.5 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
FEATURES
Exquisite and beautiful appearance, high safety, long service life, good anti-rust ability, anti-climbing, anti-theft
MASS PRODUCTION PROCEDURE
1) Raw Material Preparation----High quality galvanized iron wire
2) Machine Weaving or twisting
3) PVC Coating (Color as per requirements)(Galvanized stype can eliminate this step)
4) Packaging
5) Container Loading

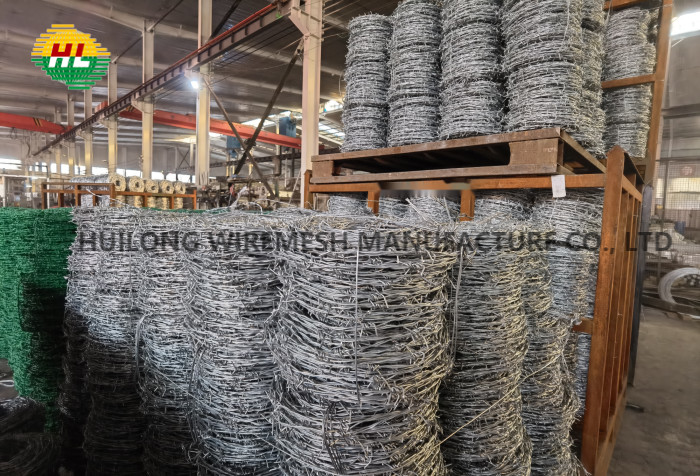

PACKAGING DETAILS

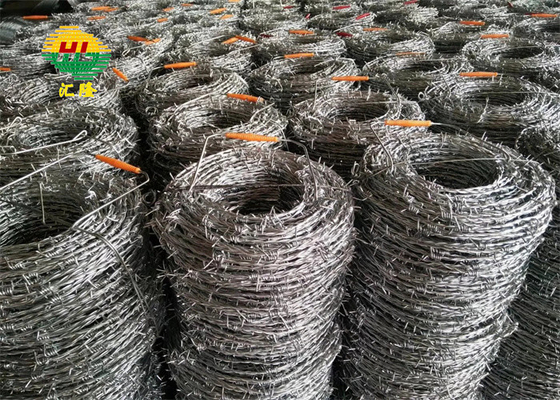

Barbed Wire is usually made into coils. For container loading, we have bulk loading and wooden pallet loading. Our packaging will ensure the Barbed Wire not being damaged during storage and shipment. According to the customer’s instruction, we will also put the label paper into the packaging. There will be a certain product description on the label paper, representing product specifications, so that you can be clear about the product information. If you have other special requirements, for example your own label, we can also customize the packaging according to your requirements. In a word, if you have any requirements, please come forward and we will give you the best solution.
APPLICATIONS
Galvanized Barbed Wire is widely used for the separation and protection of the boundary of grassland, railway, highway, prison, private field, etc. It can also be used on the top of other types of fences, such as Chain Link Fence, Welded Wire Mesh Fence, Concertina Barbed Wire, etc., to add security in your private property.
