Features: | Bind Wire | Surface Treatment: | Black Annealed |
---|---|---|---|
Wire Guage: | 8#-38#(4.04mm-0.12mm) | Material: | Q195/Q235 |
Weight: | 1KG-50KG Can Do As You Need | Application: | Used In Construction Or Daily Use As Binding Wire. |
Certification: | CE CERTIFICATE / ISO | Package: | IN COILS WITH PLASTIC FILM+WOVEN BAG/HESSIAN BAG; CARTON BOX; PALLET, ETC. |
Highlight: | BWG 22 Black Annealed Binding Wire,Construction Softness Black Annealed Binding Wire,Black Annealed Binding Wire BWG 16 |

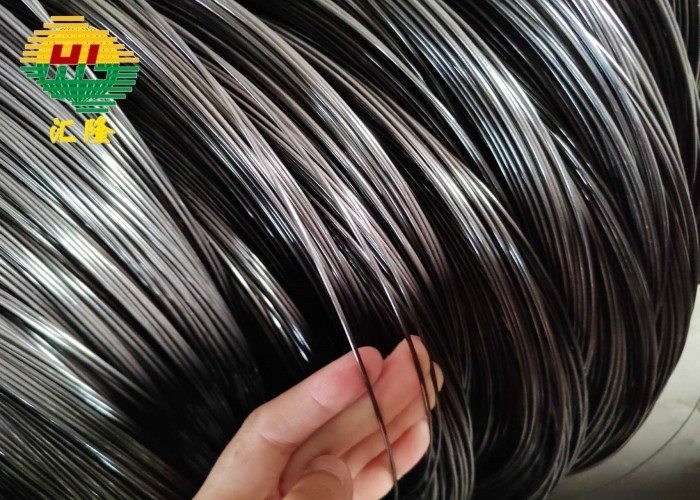

BWG16 18 20 22 Construction Softness Black Annealed Wire for Binding
Annealed steel wire is a soft and malleable steel wire made of low-carbon Steel Wire. Through the annealing process in a bell furnace, the temperature is automatically controlled according to the heating curve, ensuring that the product is uniform and has high ductility, facilitating manual bending. This steel wire has a high ductility and a lower tensile strength than galvanized steel wire. Annealing is a heat treatment process that actually changes the physical and chemical properties of the wire. This is what leads to durability and higher ductility, which makes it easier to use cables or wires. Annealed steel wire is an ally for the construction of castles, brake shoes, fences, fences, and other components of buildings such as residential areas, warehouses, and roads, as well as for the mooring of poles and abutments (rings).
1.Specifications:
Cold Drawn Wire
Diameter:0.7mm-4.0mm
Material:Low Carbon Steel WireQ195 ,Q235
Tensile strength:350-550N
Weight of coil:1kg,5kg,10kg,25kg etc as your requirement
2.Process:
Black Annealed Wire comes in the form of coil wire or cut wire. Going through the processing of
oxygen free annealing, the iron wire becomes soft and more flexible. It is supplied in reel, coil
or cut into certain sizes or in U shape.
3.Application: Black Annealed Wire is mainly used as industrial wire, construction wire, industrial tie wire and construction tie wire, etc.
4,Feature:Softness and pliability, strong breaking strength, coated with anticorrosive oil. Hard to rust. Mainly used for binding materials, Daily use and using as binding wire for construction.

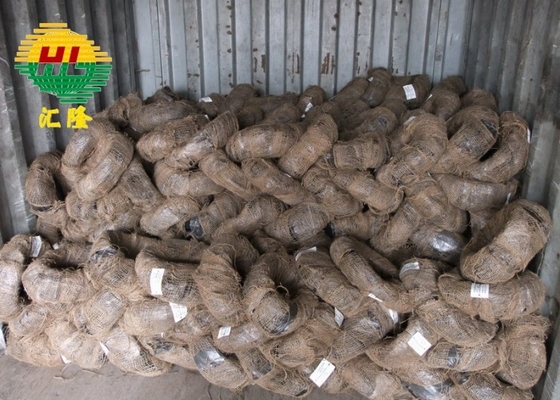

5,Packing: In coils. Coil weight from 5kg to 15kg.Can do As Customer Need.

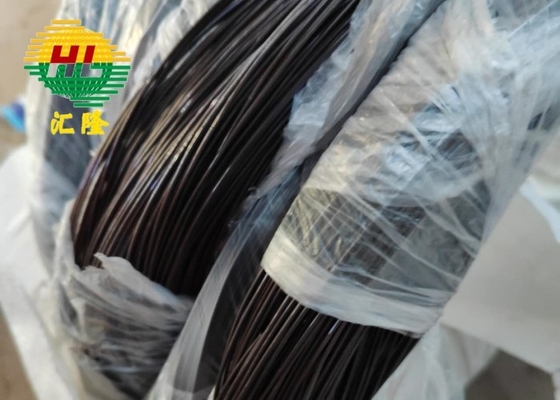

Plastic film inside and Hessian Cloth outside/
Plastic film inside and Woven Bags Outside
6,Wire Diameter Chart for your reference:
SWG | BWG | ||
8# | 4.06 | 4.19 | 4.0 |
9# | 3.66 | 3.76 | -- |
10# | 3.25 | 3.40 | 3.50 |
11# | 2.95 | 3.05 | 3.00 |
12# | 2.64 | 2.77 | 2.80 |
13# | 2.34 | 2.41 | 2.50 |
14# | 2.03 | 2.11 | -- |
15# | 1.83 | 1.83 | 1.80 |
16# | 1.63 | 1.65 | 1.65 |
17# | 1.42 | 1.47 | 1.40 |
18# | 1.22 | 1.25 | 1.20 |
19# | 1.02 | 1.07 | 1.00 |
20# | 0.91 | 0.89 |
0.90 |
21# | 0.81 | 0.813 | 0.80 |
22# | 0.71 | 0.711 | 0.70 |
Our Products will be in highly inspection in every steps.
