Product Details:
Payment & Shipping Terms:
|

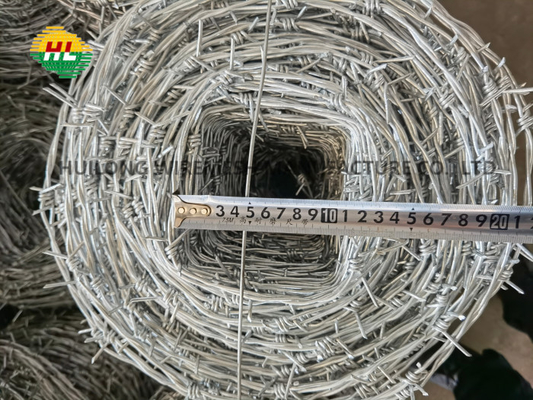

Features: | Beautiful Appearance, High Tensile Strength, Add More Security, Etc. | Product Name: | 30feet Length Galvanized Barbed Wire 25kg Roll For Agriculture |
---|---|---|---|
Material: | Galvanized Wire | Barb Length: | 1.5-3cm |
Barb Spacing: | 5 Inch | Zinc Coating: | 30-200g/sqm |
Waeving Type: | Normal Twist, Reverse Twist | Roll Length: | 30feet |
Roll Weight: | 25kg Per Roll | Color: | Silver/Galvanized |
Packaging: | Bulk Or Wooden Pallet | ||
Highlight: | 30ft Length Galvanized Barbed Wire,25kg Galvanized Barbed Wire,Agriculture Galvanized Razor Wire Roll |
Sharp 4-point barbs are spaced 5-inches apart for security and containment.
Constructed from galvanized wire with high tensile strength that is light weight and strong.
30 linear feet of barbed wire included on each heavy-duty metal carrier.
Designed for safe, convenient transport and easy unrolling.
Meets ASTM A121-92, A121-99 (2004) and A641/A641M standards.
Barbed Wire is used in agriculture, animal boundaries, military and prison protection, and also security applications. It can be installed in a line or as a loose coil. It features galvanized steel construction with 4 barbed points placed at predetermined distances. The wire features galvanized steel construction to resist corrosion.
SPECIFICATIONS
GALVANIZED BARBED WIRE | ||||
Line Wire and Barb Wire Diameter (BWG) |
Approximate Length per Kilogram in meter | |||
Barbs Spacing 3'' | Barbs Spacing 4'' | Barbs Spacing 5'' | Barbs Spacing 6'' | |
12 x 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
12 x 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12.5 x 12.5 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12.5 x 14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 |
13 x 13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 |
13 x 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13.5 x 14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14 x 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14.5 x 14.5 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15 x 15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15.5 x 15.5 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
FEATURES
MASS PRODUCTION PROCEDURE
Producing Galvanized Barbed Wire is relatively simple. It is produced by an automatic machine, through which the line wire and the barb wire are twisted together and then rolled into a coil. See the pictures below. The speed of the machine is fast, so the production capacity is also excellent.
1) Raw Material Preparation----High quality galvanized iron wire
2) Machine Weaving or twisting
3) PVC Coating (Color as per requirements)
4) Packaging
5) Container Loading
PACKAGING DETAILS

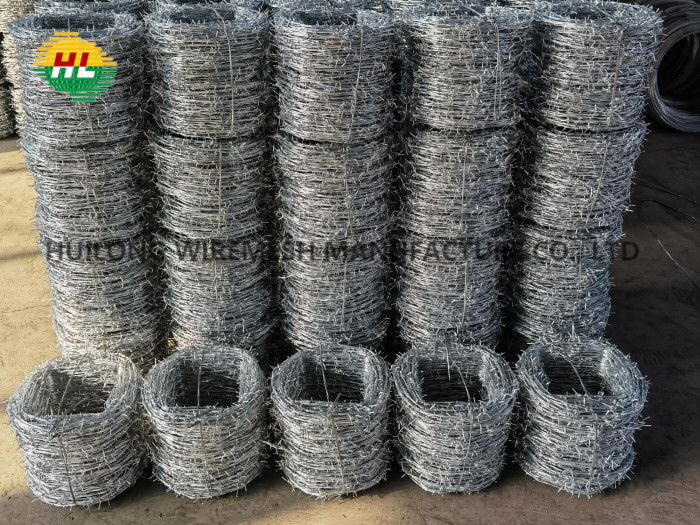

Barbed Wire is usually made into coils. For container loading, we have bulk loading and wooden pallet loading. Our packaging will ensure the Barbed Wire not being damaged during storage and shipment. According to the customer’s instruction, we will also put the label paper into the packaging. There will be a certain product description on the label paper, representing product specifications, so that you can be clear about the product information. If you have other special requirements, for example your own label, we can also customize the packaging according to your requirements. In a word, if you have any requirements, please come forward and we will give you the best solution.
APPLICATIONS
Galvanized Barbed Wire is widely used for the separation and protection of the boundary of grassland, railway, highway, prison, private field, etc. It can also be used on the top of other types of fences, such as Chain Link Fence, Welded Wire Mesh Fence, Concertina Barbed Wire, etc., to add security in your private property.
RELATED PRODUCTS
You may also like the following products and accessaries to match your Barbed Wire, and we can also arrange the other goods according to your needs.
